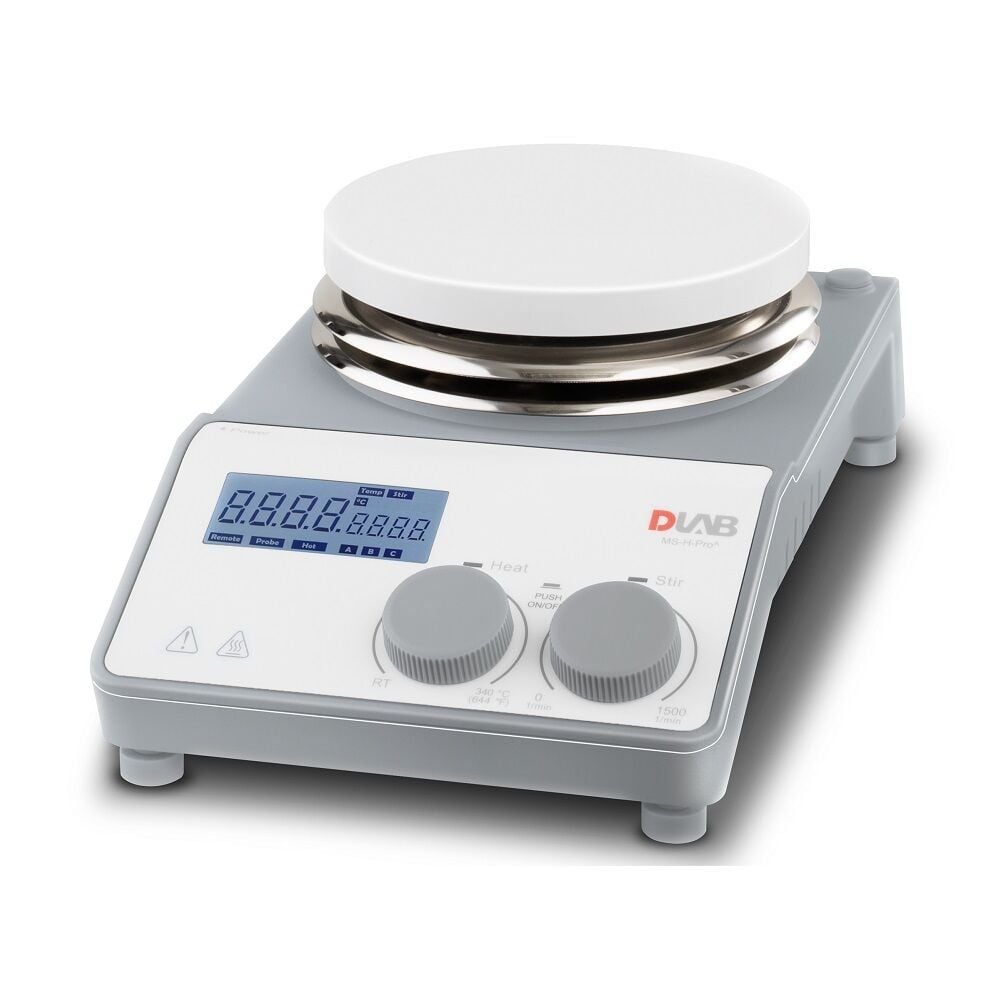

MS-H-ProA Magnetic Stirrer with Heater 100... 1.500 rpm / RT... 340 ℃ / 20 L

DLAB MS-H-ProA Magnetic Stirrer with Heater; High-precision LCD screen displays real-time temperature and speed values stably thanks to PID control

Supplied with PT1000A Temperature probe and probe holder...

Technicial Specifications

Speed Range

: 100... 1,500 rpm

Speed Resolution

: ±1rpm

Engine Type

: Brushless DC motor

Engine Rating Entry

: 18W

Engine Rating Output

: 10W

Maximum Mixing Amount H2O

: 20L

Maximum Magnetic Fish Size

: 80mm

Speed and Temperature Indicator

:LCD

Temperature Range

: Room temperature... 550 °C in 1 °C steps

Temperature Control Accuracy

: ±1 ℃ (<100 ℃ ), ± 1% (>100 ℃ )

Temperature Display Accuracy

: ±0.1 ℃

Over Temperature Protection

: 420 °C

Outside Temperature Sensor

: PT1000 (±0.2 ℃ )

Heater Plate

: Ceramic coated aluminum

Heater Plate Diameter

: 135mm

Hot Alert

: 50 °C

Data transfer

: RS232

Protection Class

: IP21

Power Input

: 650W

Heating Power

: 600W

Voltage Frequency

: 200-240 V 50/60 Hz

Environmental Conditions

: 5... 40 °C, 80% relative humidity

Dimension

: 280 x 160 x 112mm

Weight

: 5.3 kg

General features

Max. Temperature at 340 ℃ , maximum speed up to 1500 rpm

Ceramic coating aluminum plate provides fast heating performance and strong compatibility with various heating pots and heating blocks

High resolution LCD screen shows actual temperatures and speed

PID controller ensures precise and stable heating process.

External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy of ±0.2 °C

Brushless DC motor provides stronger speed control

Three heating modes (rapid heating, standard heating and constant heating) for selected

Provides remote control function, PC control and data transmission via RS232 interface
