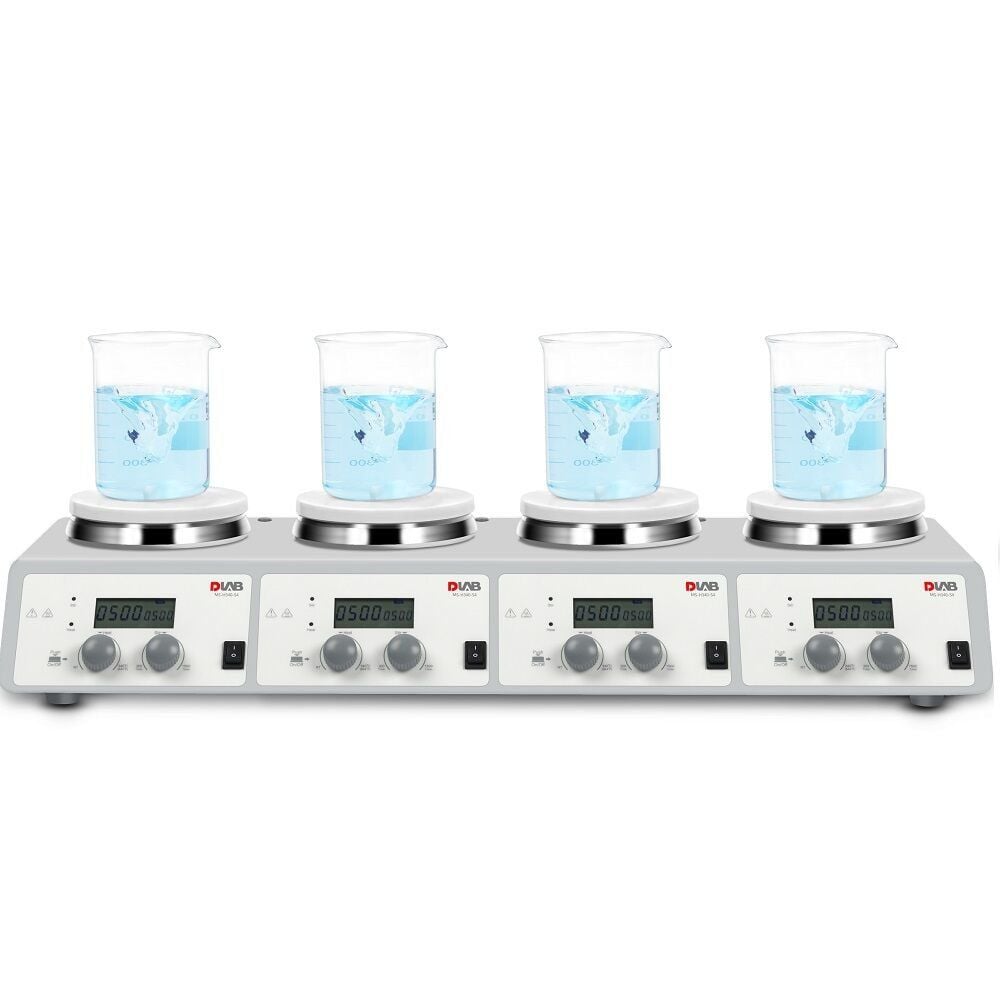

MS-H340-S4 4-Section Magnetic Stirrer with Heater 200... 1.500 rpm / 25... 340 ℃ / 4 x 10 L

Chemical synthesis, physical and chemical analysis, bio-pharmaceutical etc. It is widely used in areas. It features independent heating and mixing control. PID controller, up to 340 ℃ Max. The temperature provides a precise and constant heating process .​ ​ ​ Brushless DC motor provides stronger speed control .​ ​​ ​ ​​ ​​​

Technicial Specifications

Speed Range

: 200... 1,500 rpm

Speed Resolution

: ±20rpm

Engine Type

: Brushless DC motor

Engine Rating Entry

: 1.8W x 4

Engine Rating Output

: 10W

Maximum Mixing Amount H2O

: 10 L x 4

Maximum Magnetic Fish Size

: 40mm

Speed and Temperature Indicator

:LCD

Temperature Range

: 25... 340 °C in 1 °C steps

Control Accuracy of Sensor

: ±20rpm

Temperature Display Accuracy

: ±0.1 ℃

Over Temperature Protection

: 420 °C

Outside Temperature Sensor

: PT1000 (±0.2 ℃ )

Heater Plate

: Ceramic coated stainless steel

Heater Plate Diameter

: 135mm

Hot Alert

: 50 °C

Data transfer

: RS232

Protection Class

: IP21

Power Input

: 515WX4

Heating Power

: 500W

Voltage Frequency

: 200-240 V 50/60 Hz

Environmental Conditions

: 5... 40 °C, 80% relative humidity

Dimension

: 697 x 270 x 128mm

Weight

: 9.5 kg

General features

Independent heating and mixing control

LCD screen shows actual temperatures and speed

PID controller, up to 340 ℃ Max. temperature ensures a precise and constant heating process ​​ ​​ ​

Brushless DC motor provides stronger speed control

External temperature sensor ( PT1000 ) with 0.2 ℃ sensitivity ​

extreme at 420 ℃​ ​ protection temperature against overheating​ ​ ​​ ​

Stainless steel work plate with ceramic coating provides good chemical resistant performance

Provides remote control function, PC control and data transmission via RS232 interface

A wide range of accessories are available
