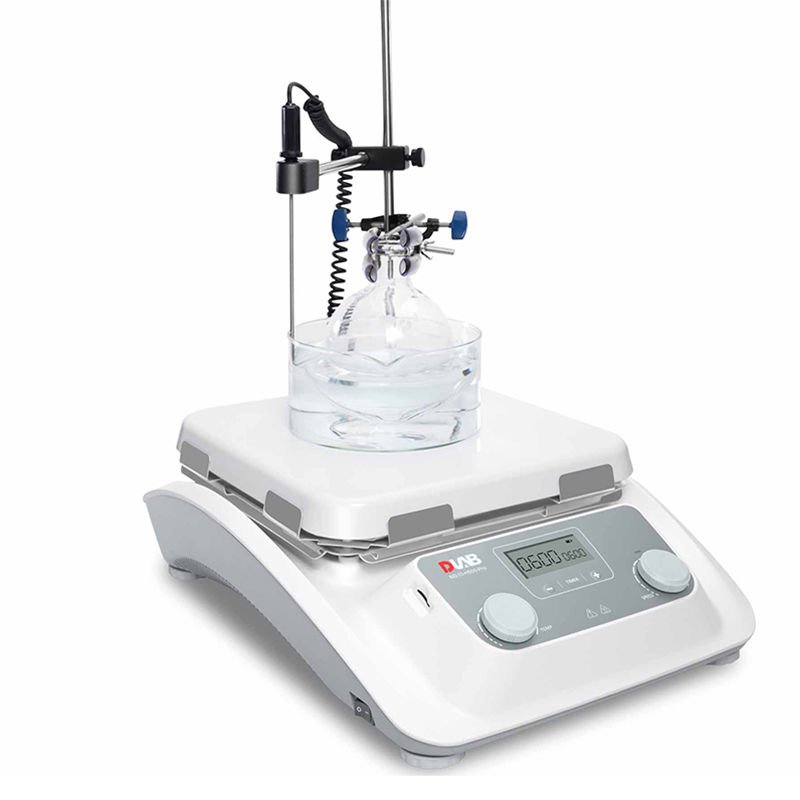

MS10-H500-Pro SET Magnetic Stirrer with Heater 1.500 rpm / RT 500 ℃ / 30 L SET
Powerful and rigid heating and mixing process of up to 30 L of water with DLAB MS10-H500-Pro Magnetic Stirrer with Digital Indicator Heater. Complete with PT1000A (18900016) + support clamp (18900017) |
Technicial Specifications | |
Speed Range | : 100... 1,500 rpm |
Engine Type | : Brushless DC motor |
Maximum Environmental Speed | : 6.3 - 14 m/sec |
Maximum Mixing Amount H2O | : 30L |
Maximum Magnetic Fish Size | : 80mm |
Speed Time Temperature Display | :LCD |
Timer Interval | : 1 minute... 99 hours 59 minutes |
Temperature Range | : Room temperature... 500 °C in 1 °C steps |
Temperature Control Accuracy | : ±1 ℃ (<100 ℃ ), ± 1%(>100 ℃ ) |
Temperature Display Accuracy | : ±0.1 ℃ |
Over Temperature Protection | : 540 °C |
Outside Temperature Sensor | : PT1000 (±0.2 ℃ ) |
Heater Plate | : Ceramic glass |
Outside Temperature Measurement | : 254 x 254mm |
Hot Alert | : 50 °C |
Data transfer | : Memory card |
Protection Class | : IP21 |
Power Input | : 1400W |
Heating Output | : 1350W |
Voltage Frequency | : 200-240 V 50/60 Hz |
Environmental Conditions | : 5... 40 °C, 80% relative humidity |
Dimension | : 328 x 424 x 138mm |
Weight | : 7.18kg |
General features |
Heating and stirring up to 30 L of water on a 254 x 254 mm glass ceramic plate with strong magnetic stirring |
Glass ceramic work plate provides excellent chemical resistance performance and most efficient heat transfer |
LCD display for precise monitoring of speed and temperature |
External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy of ±0.2 °C |
100~1500rpm digital speed control |
Max. heating plate temperature 500 ℃ Even if the stove is turned off , the " HOT " warning will flash when the working plate temperature exceeds 50 ° C. |
Data connector: SD card also records device running data in real time |
Timing function: The working time of the instrument can be set. |
